OKE CCMT09 CCMT12 TCMT OP1215 Carbide Inserts -SL series

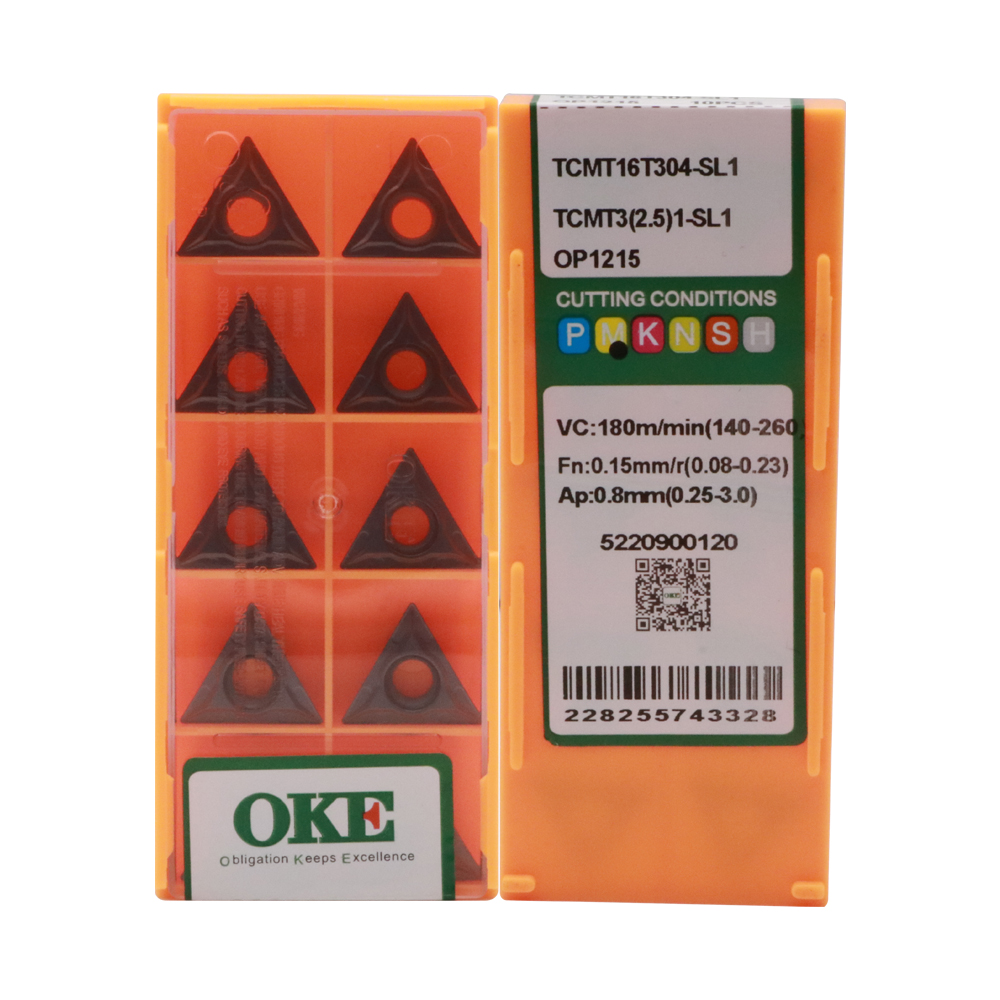

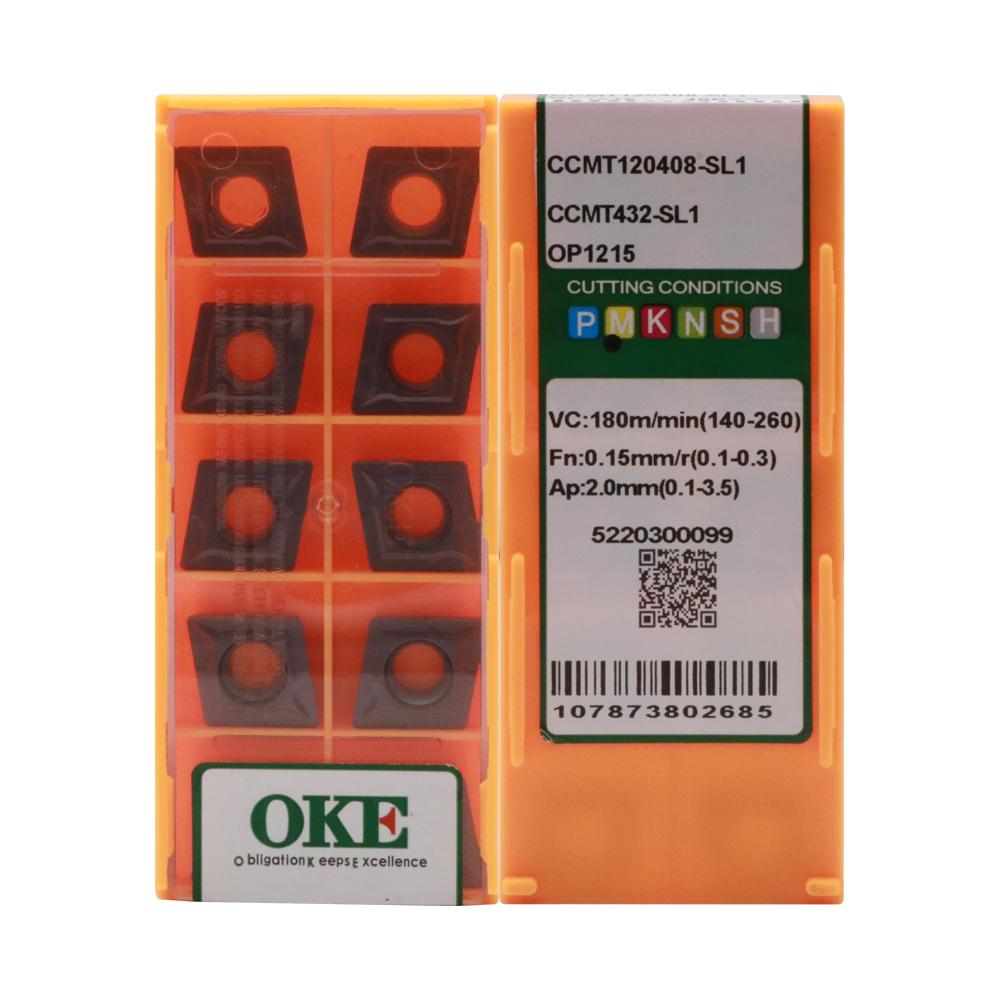

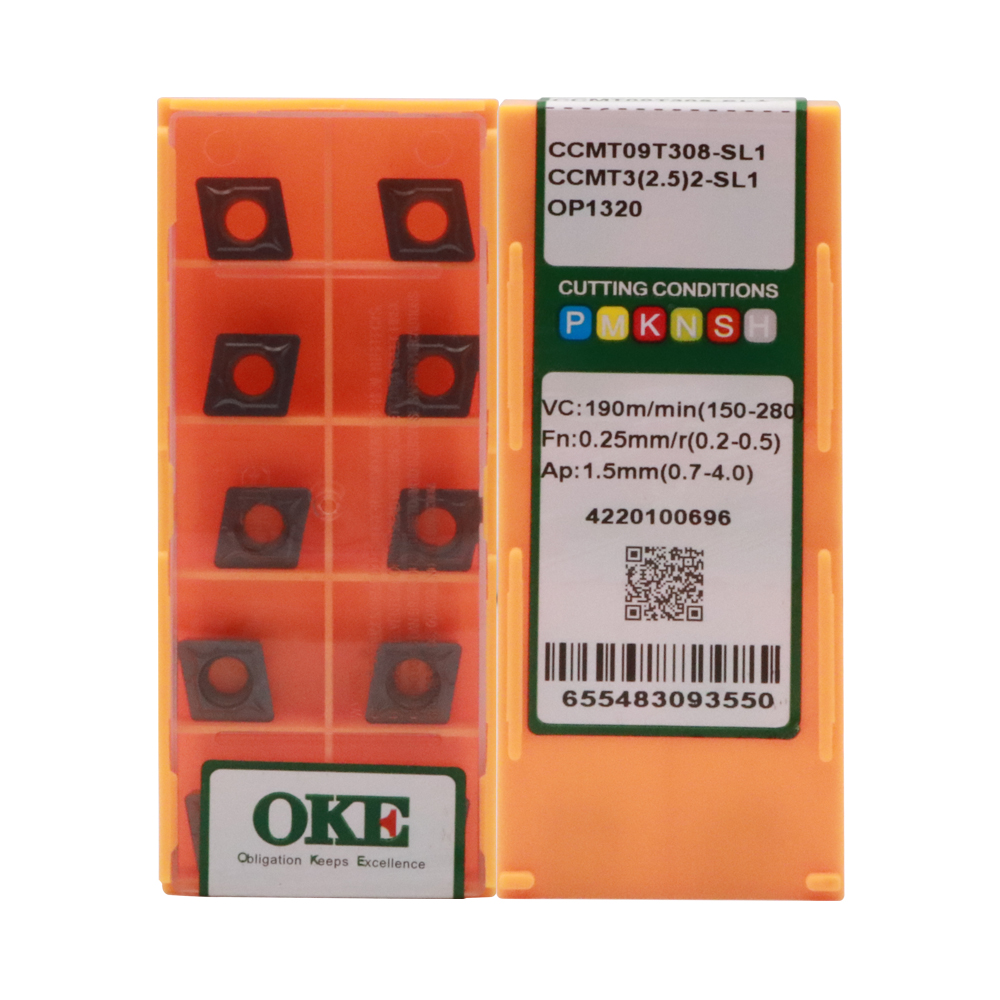

Code: CCMT09T308-SL1 TCMT16T304-SL1 CCMT120408-SL1
Material: 100%Virgin Material Tungsten Carbide
Usage: Semi finish machining
Hardness: HRA92.5
Application: For Stainless steel
Coating: PVD
Advantage: high hardness and excellent wear resistance
Certification: ISO9001:2015
Customized support: OEM/ODM
Place Of Origin: Zhuzhou,Hunan,China
Request For Quotation
  • Description
  • Advantages
  • Shipping



PRODUCT PARAMETER LIST

Product Name

Tungsten Carbide Inserts

Brand

OKE

Model

 CCMT09T308-SL1 TCMT16T304-SL1 CCMT120408-SL1

Grade

OP1215

Coating

PVD/CVD

Place of Origin

ZHUZHOU

Workpiece

Stainless steel

Usage

Semi finish machining

Packing

10pcs in a plastic box

1. OKE turning insert cutting tool is of good wear resistance,high bending strength,strong bonding resistance, excellent heat resistance,impact toughness and high hardness.

2. OKE turning insert cutting tool has long service life and easy to assembly, no crack or chipping.

3. Specification and accuracy of OKE turning insert cutting tool is fully compliance with ISO standard.

If you require other specifications or models, please contact our customer service.


Introduction of Grade

Grade

Hardness

Coating

Colour

Feature

OC2125

1480

CVD

Black

Low Cobalt content,and high cubic content carbide substrate combine with thickTiCN and AlzOs, treated by special after coating
treatment, which gives insert wonderful wearing resistance. Preferred grade for semi finishing to finishing steel machining.

OC2115

1530

CVD

Black

Low Cobalt content, and high cubic content carbide substrate combine with thickTiCN and AlzOs, treated by special after coating
treatment, which gives insert wonderful wearing resistance. Preferred grade for semi finishing to finishing steel machining.

OP1215

1560

PVD

Dark Purple

High Co content and fine WC grain substrate, gives wonderful cutting edge strength,combines with good thermal stability silicon
coating, it has very small coefficient offriction, and good nano hardness. Good at Stainless steel semi-finishing turning ,
parting and grooving processing.preferred grade for steel and Stainless steel milling and drilling.

OP1315

1560

PVD

Gray

High Co content and fine WC grain substrate, gives wonderful cutting edge strength,combines with new AlTiN coating, it has very
small coefficient of friction,high antioxidant temperature, and good nano hardness. Preferred grade for steel and stainless steel
milling and drilling.




The carbide inserts is one type of well commented carbide turning inserts which be popular among our customers all over the world.

1. 100% original carbide powder and excellent wear resistance and toughness;
2. High performance of CVD/PVD coating, with super hard and smooth surface;
3. ISO9001:2015 quality system control;
4. Professional chip-breaker design and provides perfect cutting performance;
5. Precise dimension, high accuracy;
6.Super long and consistent tool lifespan;
7. Customized insert design, coating, marking, packing are available.




Advantages:
1.100% factory price and good quality
2.High stability, high performance,longer service life
3.Have in stock, fast delivery

Feature:
1.Excellent wear resistance and breakage resistance
2.Professional inspection and high precision
3.High precision, easy replacement, general use

Packaging & Shipping
