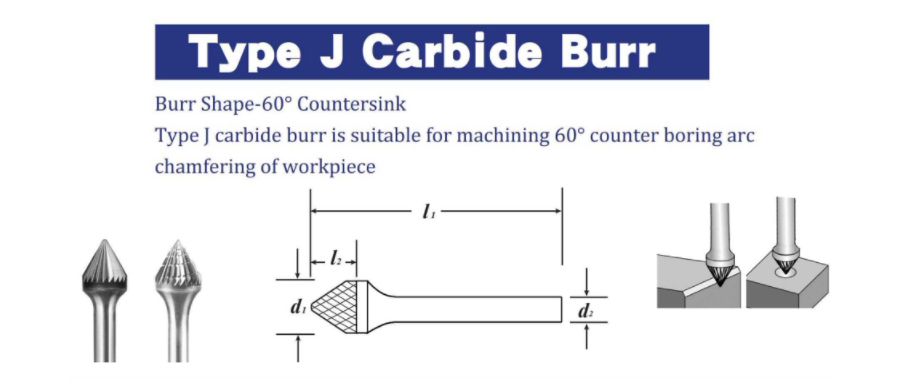

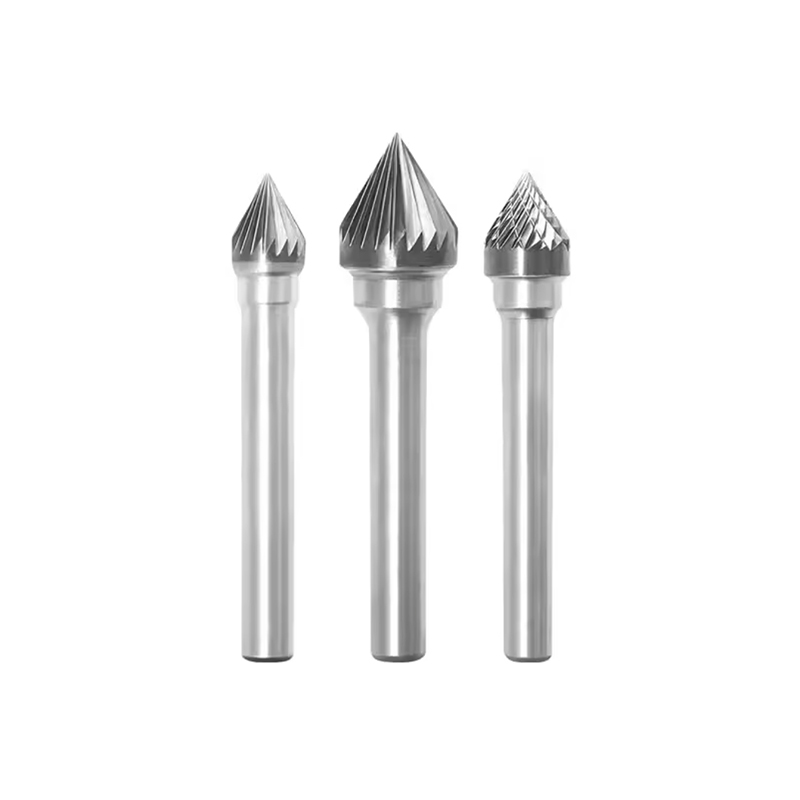

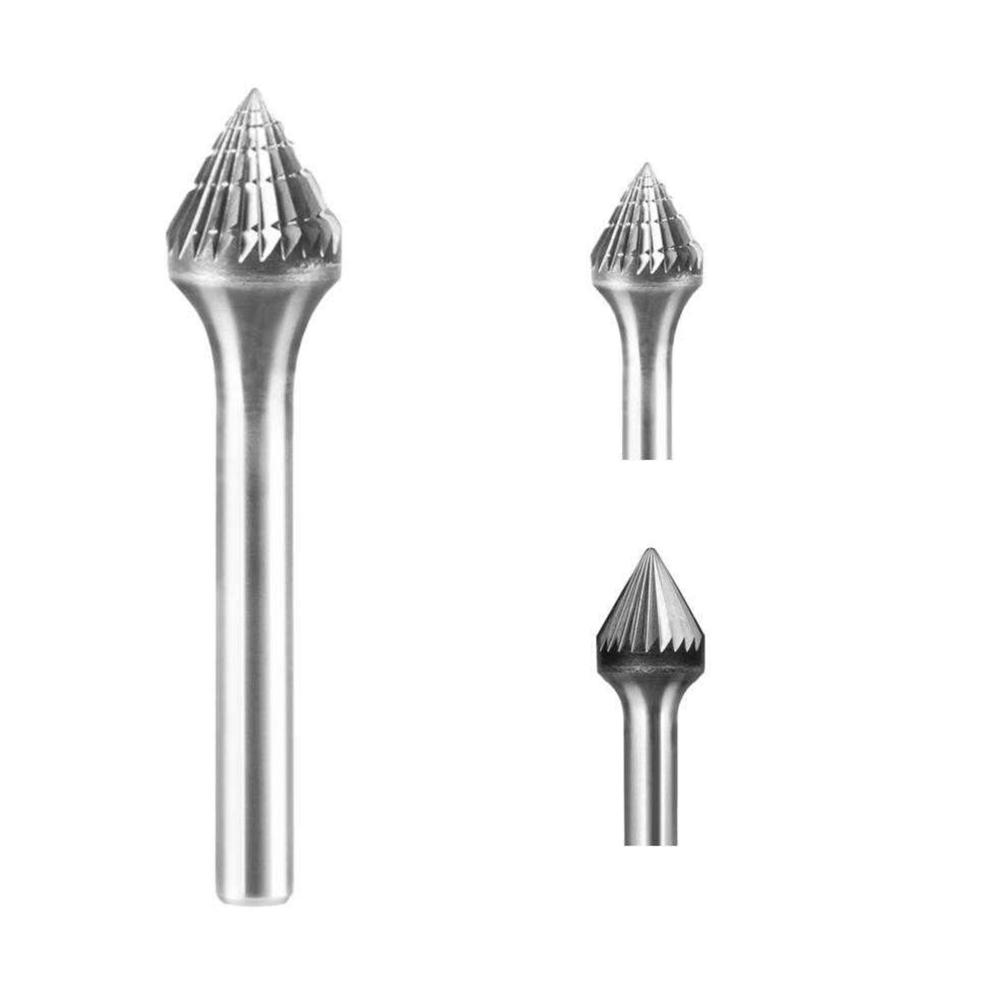

1/4 inch SJ Carbide Burr 60 Degree Die Grinder Bit Rotary Tool Burr

Code: SJ
Material: Tungsten Carbide
Usage: used on ferrous and non ferrous metals, aluminium, soft steel and also for all non-metal materials such as plastics and wood.
Hardness: HRC50-60/HRA92.5
Application: Widely used for metalwork, tool making, engineering, model engineering, wood carving, jewellery making, welding, chamferring, casting, deburring, grinding, Tree Shape Radius End head porting and sculpting
Advantage: Durable,high hardness and impact toughness,efficient, long lasting.
Certification: ISO9001:2015
Customized support: OEM/ODM
Place Of Origin: Zhuzhou,Hunan,China
Request For Quotation
  • Description
  • Advantages
  • Shipping

SJ-5 Double Cut Carbide Burr Die Grinder Bit

Tungsten carbide burrs are widely used in industrial sectors such as machinery, aviation, automobile, shipbuilding, chemical engineering, and process engraving. The main usage are as follows:

  • Fine processing of various metal molds, such as processing shoe molds, etc.

  • Used for various metal and non-metal process engraving, such as mold engraving, trimming of craft gifts

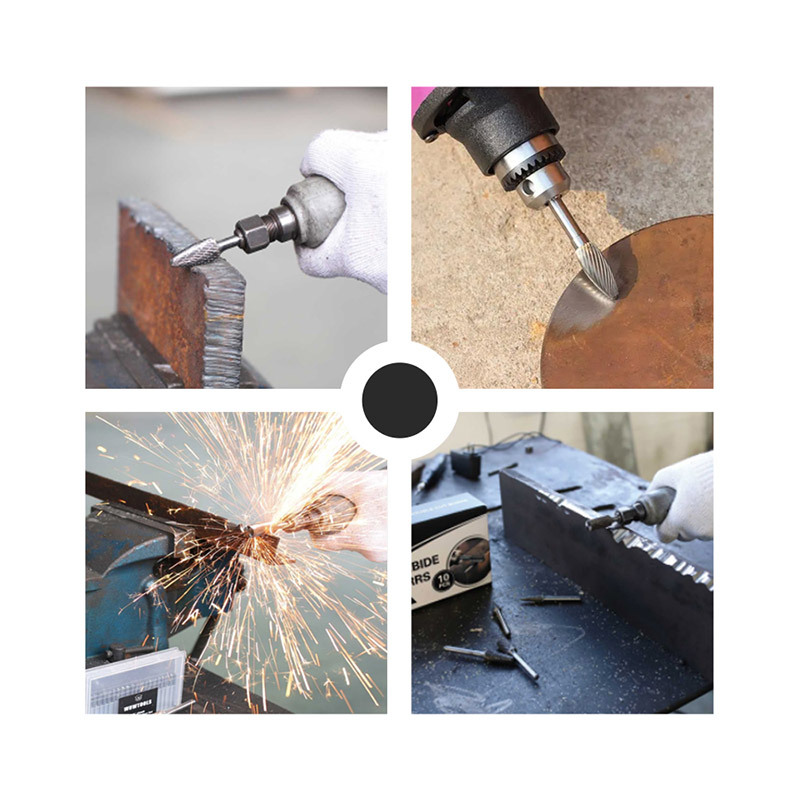

  • Clean the flash, burrs, welds of castings, forgings, weldments, such as machine-casting factories, shipbuilding factories, automobile factories, etc.

  • Used for chamfering rounding and groove processing of various mechanical parts, cleaning pipes, finishing the inner hole surface of mechanical parts, such as machinery factory, repair shop, etc.

  • Used for the repair of the impeller runner, such as the car engine factory.





ModelCutter  Dia(mm)Cutter Length(mm)Shank DiaShank Length
SJ-39.511.131/41-3/4
SJ-512.713.891/41-3/4
SJ-615.8817.481/41-3/4
SJ-719.0520.241/41-3/4
SJ925.424.891/41-3/4

Item No.Cutter  DiaCutter LengthShank DiaOverall
J0607M066mm5mm6mm52mm
J0809M068mm7mm6mm54mm
J1011M0610mm9mm6mm56mm
J1213M0612mm10mm6mm58mm
J1415M0614mm12mm6mm60mm
J1618M0616mm14mm6mm63mm
J1920M0619mm17mm6mm65mm




  • Instructions for use
  •
  • Carbide rotary burr is mainly used in power tools or pneumatic tools (also can be installed on machine tools), and the driving speed is generally 6000-50,000 rpm.The difference between double cutter and single cutter
  • Double cutter is more suitable for materials with lower density. For example, used on wood, plastic, aluminum and other materials. With crossed lines, the chip removal is fast, and it is easy to block in the grain gap during grinding and engraving, so the double cut is more suitable for the soft object.
  • The texture of the single-cutter determines that it is not suitable for processing softer materials. Because the single cutter cuts the soft material, the debris is easy to block the sipe, resulting in a shallower texture depth and a lower cutting capacity. Therefore, single cutter is more suitable for hard materials such as iron, copper and steel.

Custom size description

  • All the products in stock are metric-sized products. For customers who require inch sizes, please contact us.
  • Non-standard sizes are available to produce as required sizes and drawing.
  • Please contact with us for more details about this product and other shapes of products.
