| Code: | SN |
|---|---|
| Material: | Tungsten Carbide |
| Usage: | Suitable for machining various kinds of metal material including ≤HRC65 hardened steel |
| Hardness: | HRC50-60/HRA92.5 |
| Application: | Widely used for metalwork, tool making, engineering, model engineering, wood carving, jewellery making, welding, chamferring, casting, deburring, grinding, Tree Shape Radius End head porting and sculpting |
| Advantage: | Durable,high hardness and impact toughness,efficient, long lasting. |
| Certification: | ISO9001:2015 |
| Customized support: | OEM/ODM |
| Place Of Origin: | Zhuzhou,Hunan,China |
Product description
Multi Purpose: Widely used for metalwork, tool making, engineering, model engineering, wood carving, jewellery making, welding, chamferring, casting, deburring, grinding, cylinder head porting and sculpting
Good Quality:Good processing quality, high finish. Can be processed into a variety of high-precision shape mold cavity

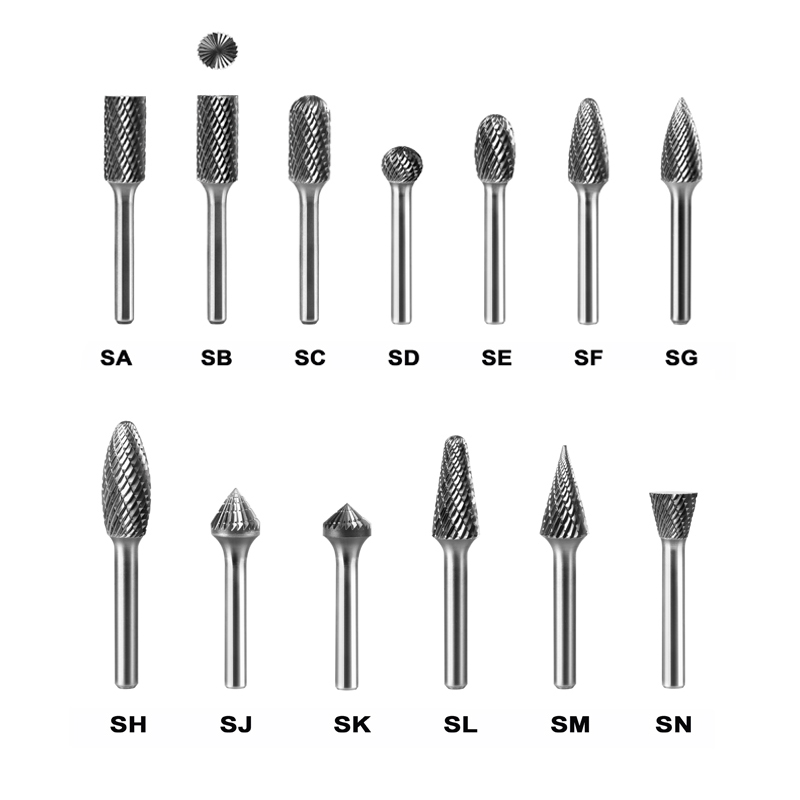

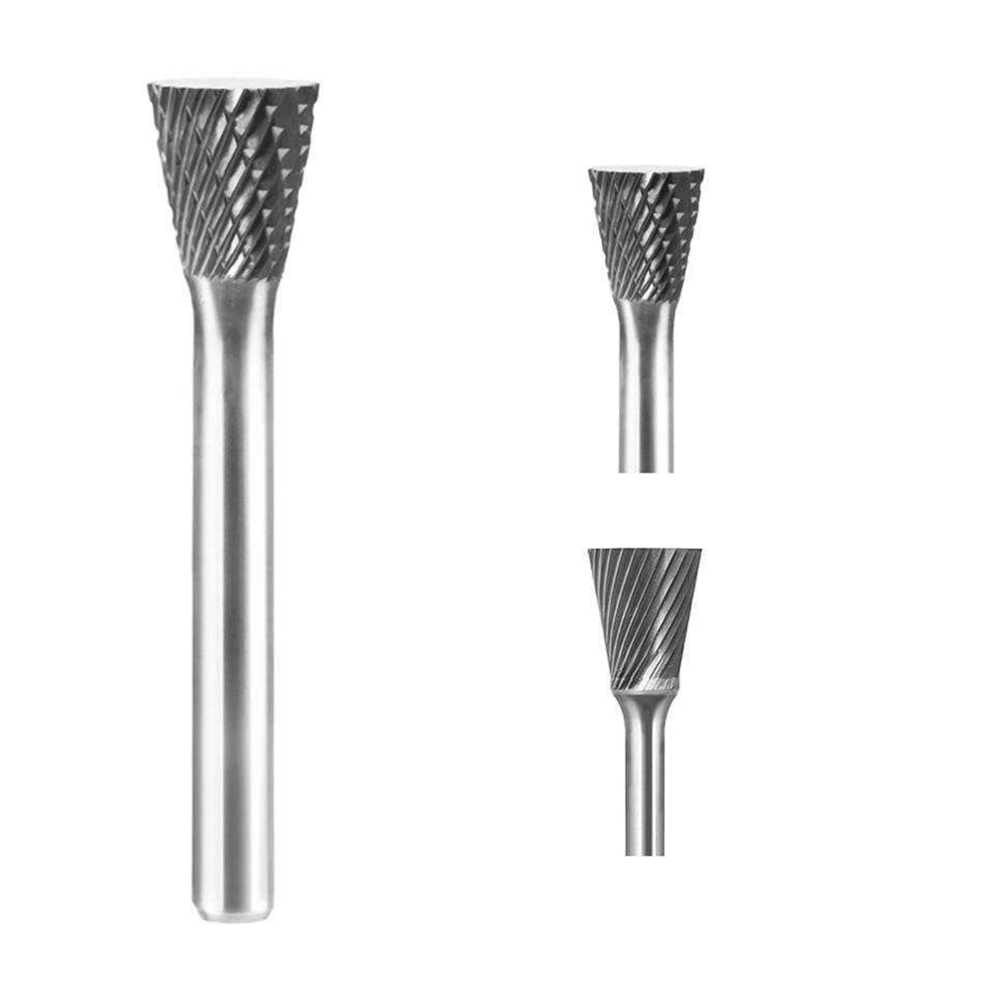

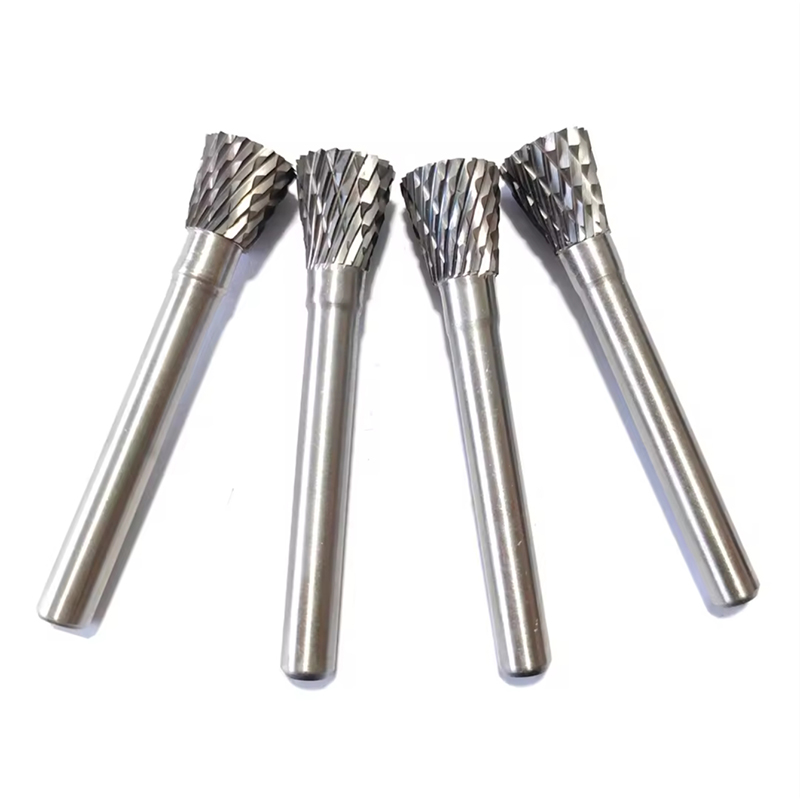

Shape：Double cut Inverted Cone Shap, SN
Long Life: Made of heat-treated Solid tungsten carbide YG8 that lasts 8 times working life Durability than HSS tool，Suitable for machining various kinds of metal material including ≤HRC65 hardened steel
Warning: Non-dental Use, Non-medical Products

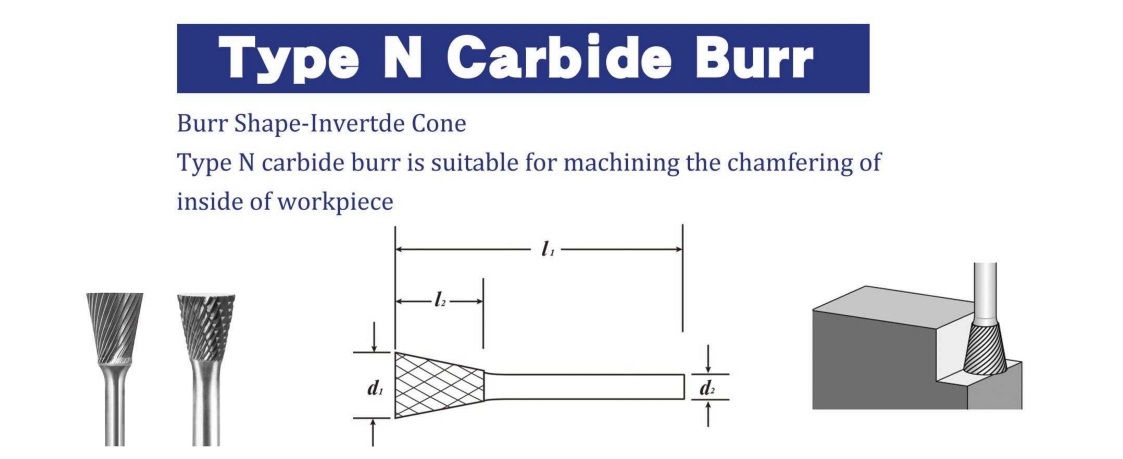

| Model | Cutter Dia（mm） | Cutter Length(mm) | Shank Dia | Shank Length |
| SN-2 | 9.5 | 9.5 | 1/4 | 1-3/4 |
| SN-3 | 12.7 | 12.7 | 1/4 | 1-3/4 |
| SN-4 | 12.7 | 12.7 | 1/4 | 1-3/4 |
| SN-6 | 15.88 | 19.05 | 1/4 | 1-3/4 |
| SN-7 | 19.05 | 15.88 | 1/4 | 1-3/4 |

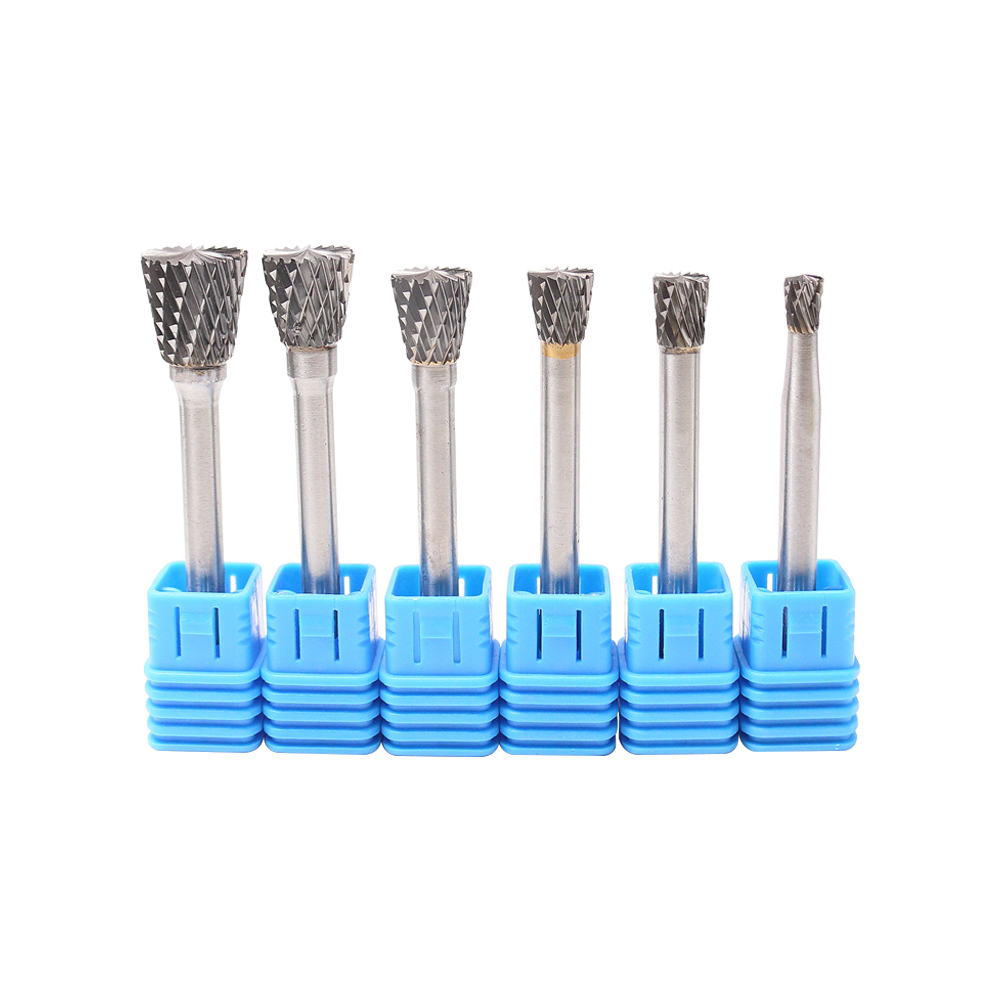

| Item No. | Cutter Dia | Cutter Length | Shank Dia | Overall |
| N0607M03 | 6mm | 7mm | 6mm | 52mm |
| N0809M06 | 8mm | 9mm | 6mm | 54mm |
| N1010M06 | 10mm | 10mm | 6mm | 55mm |
| N1213M06 | 12mm | 13mm | 6mm | 58mm |
| N1414M06 | 14mm | 14mm | 6mm | 59mm |
| N1616M06 | 16mm | 16mm | 6mm | 61mm |
| N1619M06 | 16mm | 19mm | 6mm | 64mm |
Tungsten carbide burrs are widely used for metalwork, engineering, tool making, model engineering, jewelry making,wood carving, welding, chamfering, casting, deburring, grinding, cylinder head porting and sculpting.

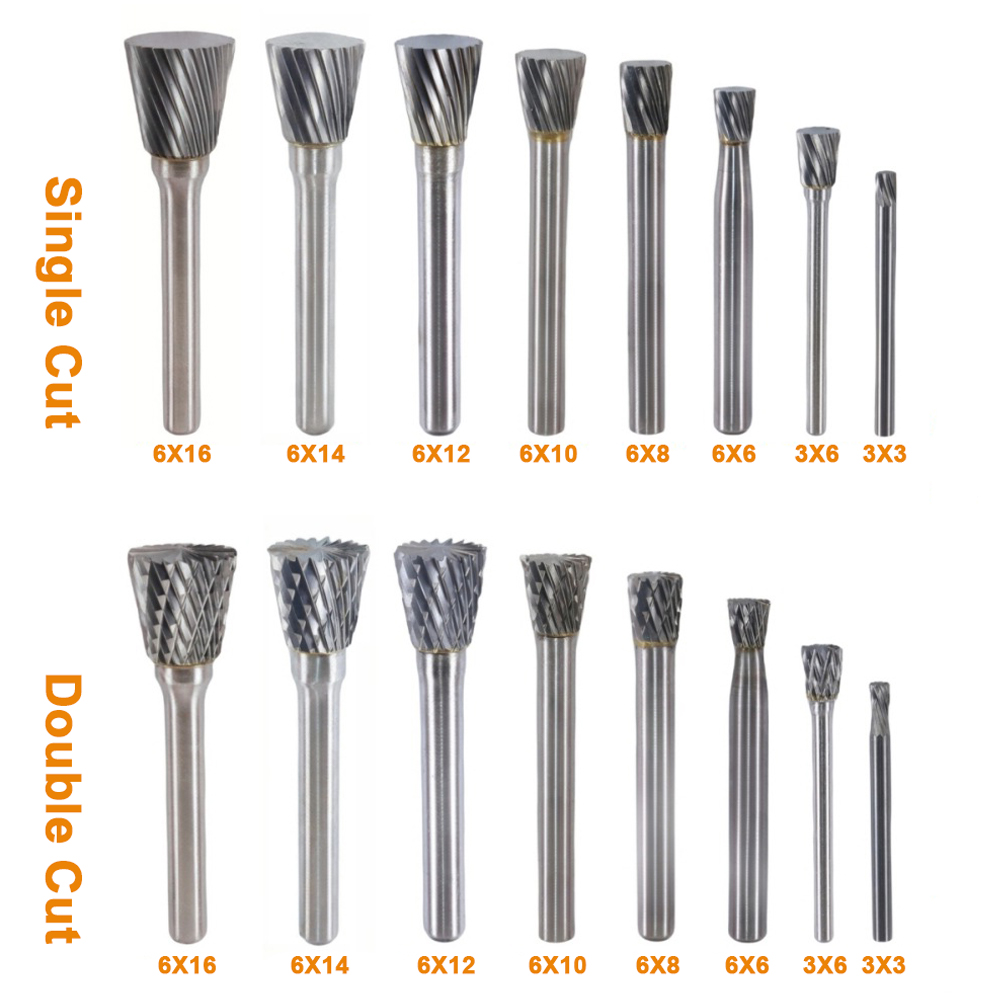

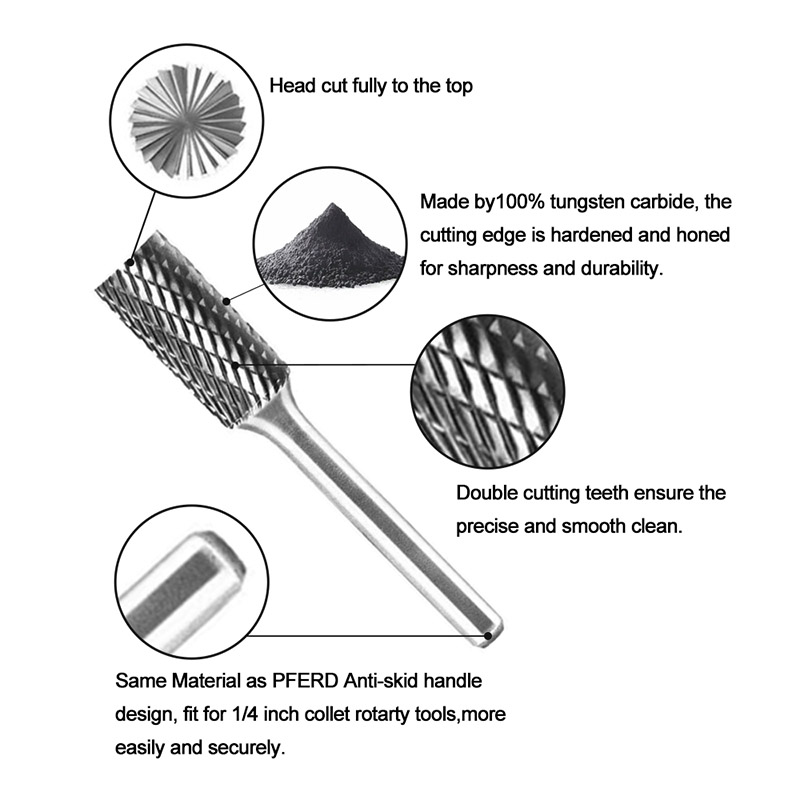

Our Double Cut Carbide Burrs tend to be used on ferrous and non ferrous metals, aluminium, soft steel and also for all non-metal materials such as plastics and wood. They have more cutting edges and will remove material faster. Double cut will leave a smoother finish than single cut due to producing smaller chips. Use for medium-light stock removal, deburring, finishing and cleaning. A double cut carbide burr is the most popular cut and will see you through most applications.
